Dishwasher Hardware Repair

Component-level diagnosis and repair of a catastrophic electrical failure.

Project Overview

Dishwashers, along with many home appliances are often cheaper to change rather than to repair. This is a direct consequence of our over-consumption based culture and has a tremendous environnemental impact. This article hence aims to be an incentive for sustainable engineering, preivailing repairement over replacement.

When a second-hand Siemens dishwasher suffered a total power failure, that tripped the apartment’s main circuit breaker, I performed a full teardown to locate the fault. This project highlights the practical application of electrical engineering to extend the lifecycle of home appliances.

Failure Analysis

After disassembling the chassis, I managed to find the culprit: the Anti-parasite capacitor (EMI Filter) had suffered a catastrophic dielectric breakdown. The internal short-circuit resulted in carbonized housing and a low-impedance path to ground. This could have actually turned out way worse than a power break (potential fire hazard). For the main circuit breaker to trip, the component must have experienced a significant current leak.

The catastrophic failure of the original Anti-parasite capacitor.

Technical Context: Induction Motors

During the teardown, I looked further into the dishwasher’s design, notably the circulation pump. It uses a single-phase AC induction motor, which requires a start capacitor to create the necessary phase shift in the auxiliary winding to initiate rotation.

This was a interesting real-world application of concepts from my Lab in Energy Conversion and Electrical Machines courses at EPFL that I followed during my BSc.

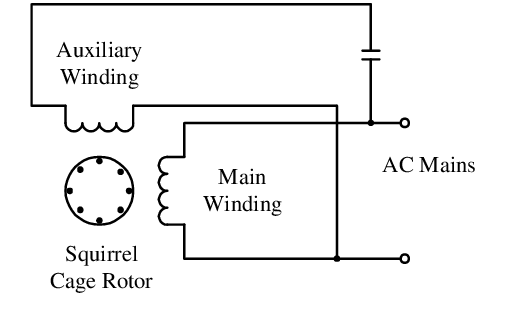

The AC induction motor and its corresponding wiring schematic.

Resolution

For approximately 20 CHF, I found an original Anti-parasite capacitor (standard for Bosch/Siemens/Gaggenau):

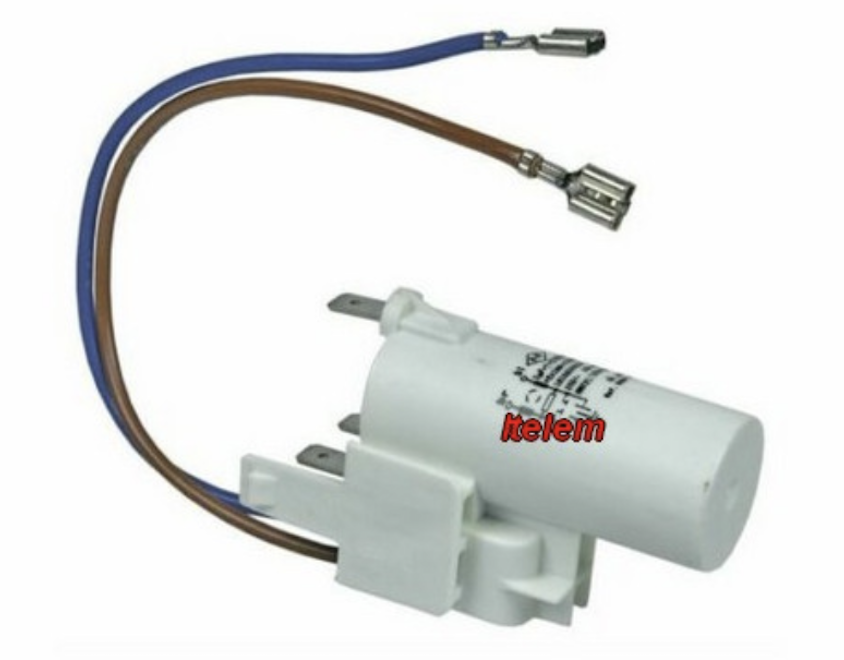

Standard Bosch/Siemens Anti-parasite capacitor.

Outcome: After reassembling the unit, the dishwasher turned on again without tripping the breaker. This “simple” repair put into practice engineering concepts learned during lectures in order to prevent electronic waste.
